SPECIFICATIONS

Battery: 72V, 72V/40Ah

Battery Capacity: 40AH, 40Ah

Battery Position: Down Tube

Battery Type: lithium

Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)

Brand Name: Rerode

Charger: 4H

Charging Time: >3 hours

Frame: All aluminum alloy forged frame

Frame Material: aluminum alloy

Gears: 3 Speed

Hign-concerned Chemical: None

Max Load: 100KG

Max Power: 17KWW

Max Speed: 90KM/H, 95Km/h

Model Number: R1 +

Motor Power: 17KW

Motor position: Central Motor

Origin: Mainland China

Place of Origin: Chongqing, China

Power Source: Lithium Battery

Power Supply: Lithium Battery

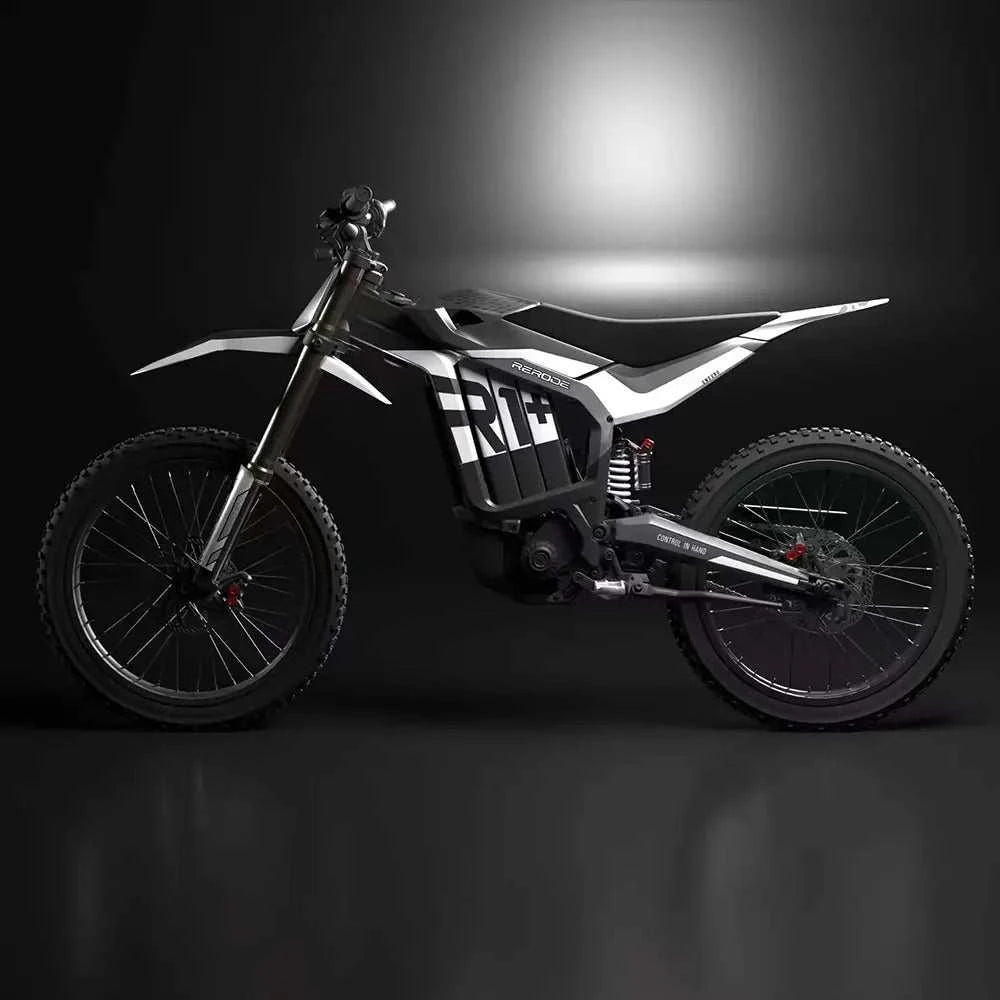

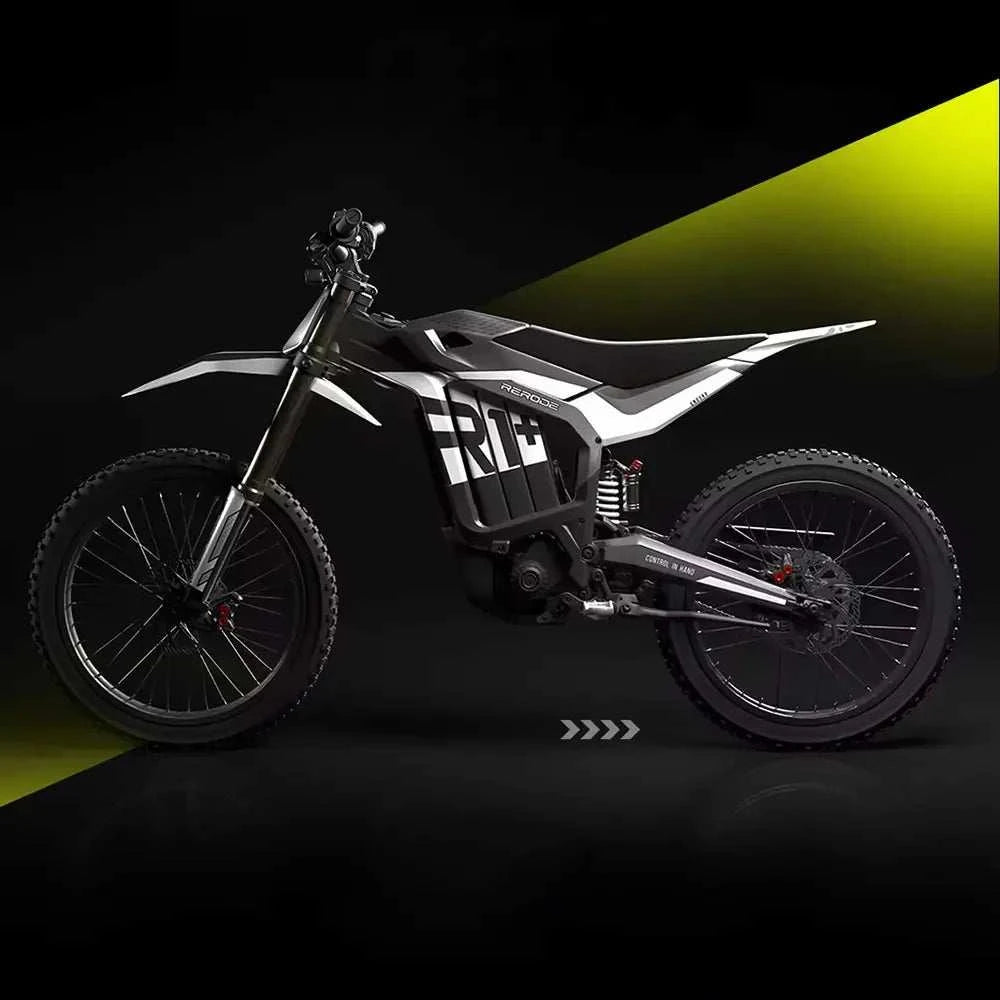

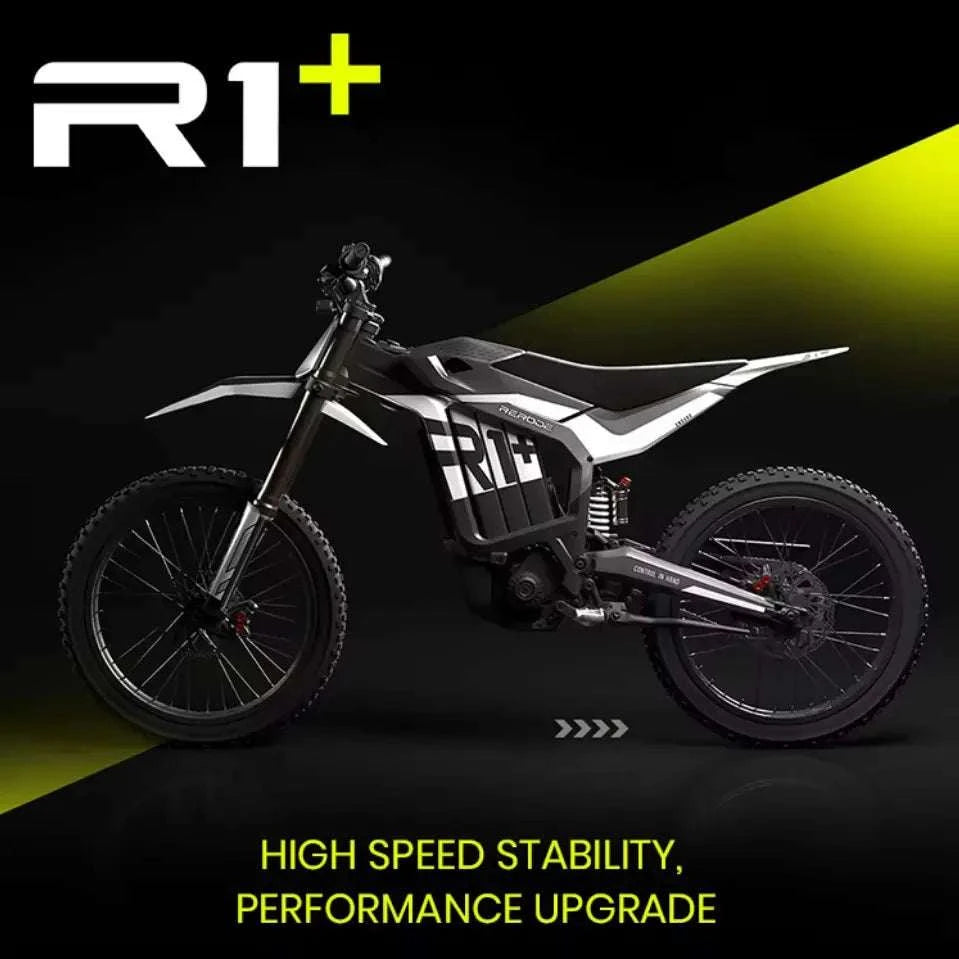

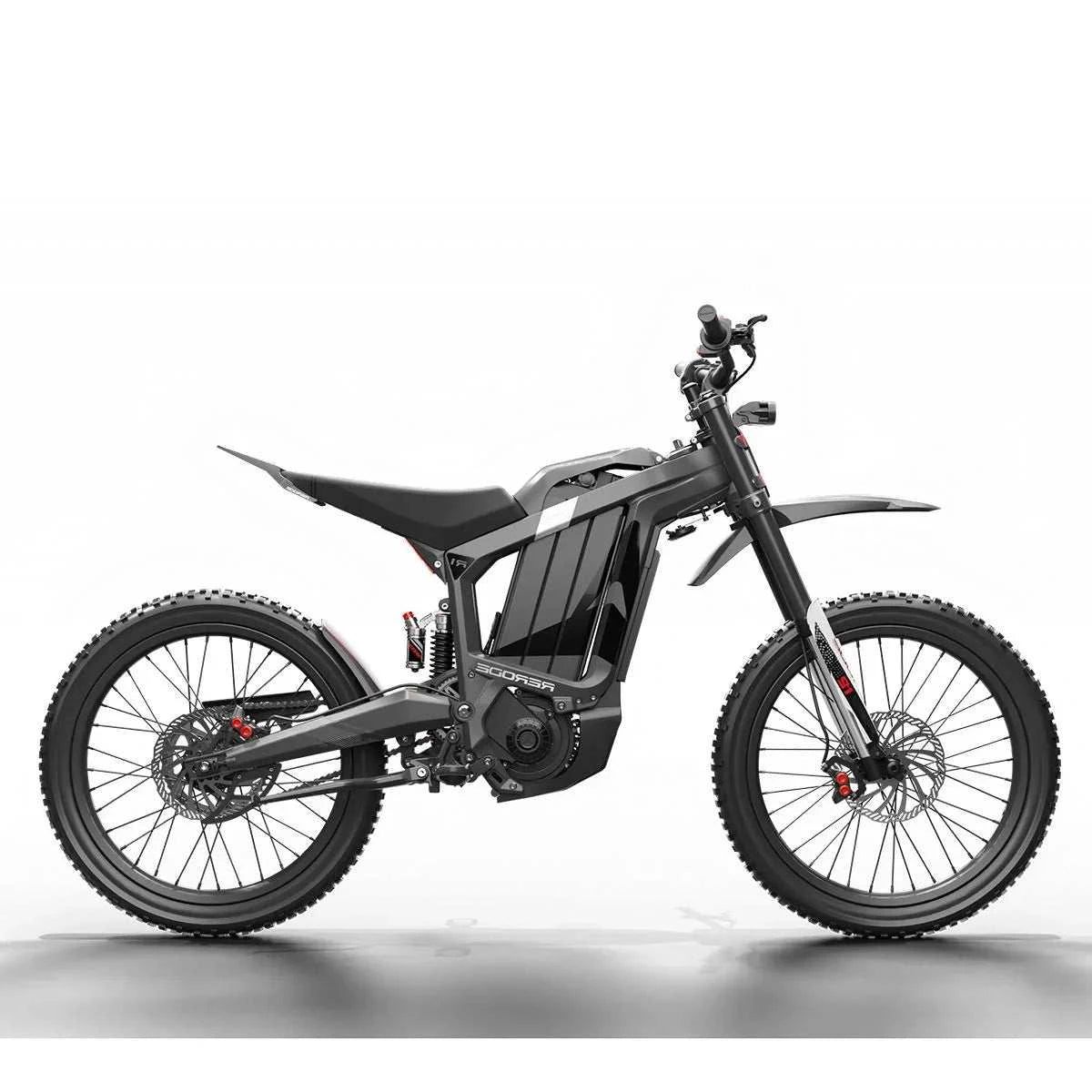

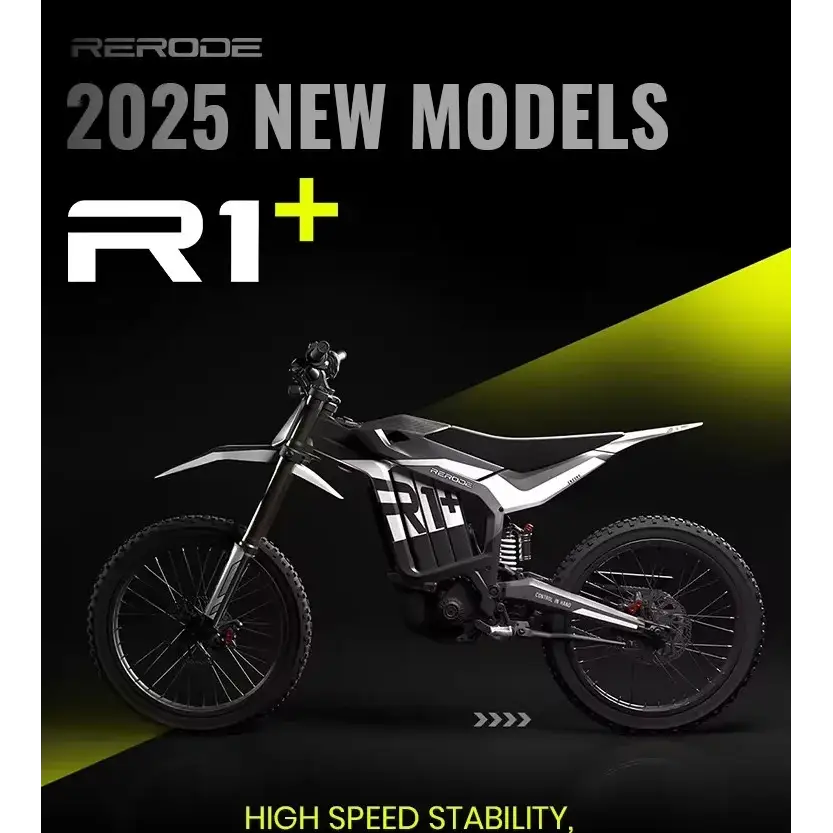

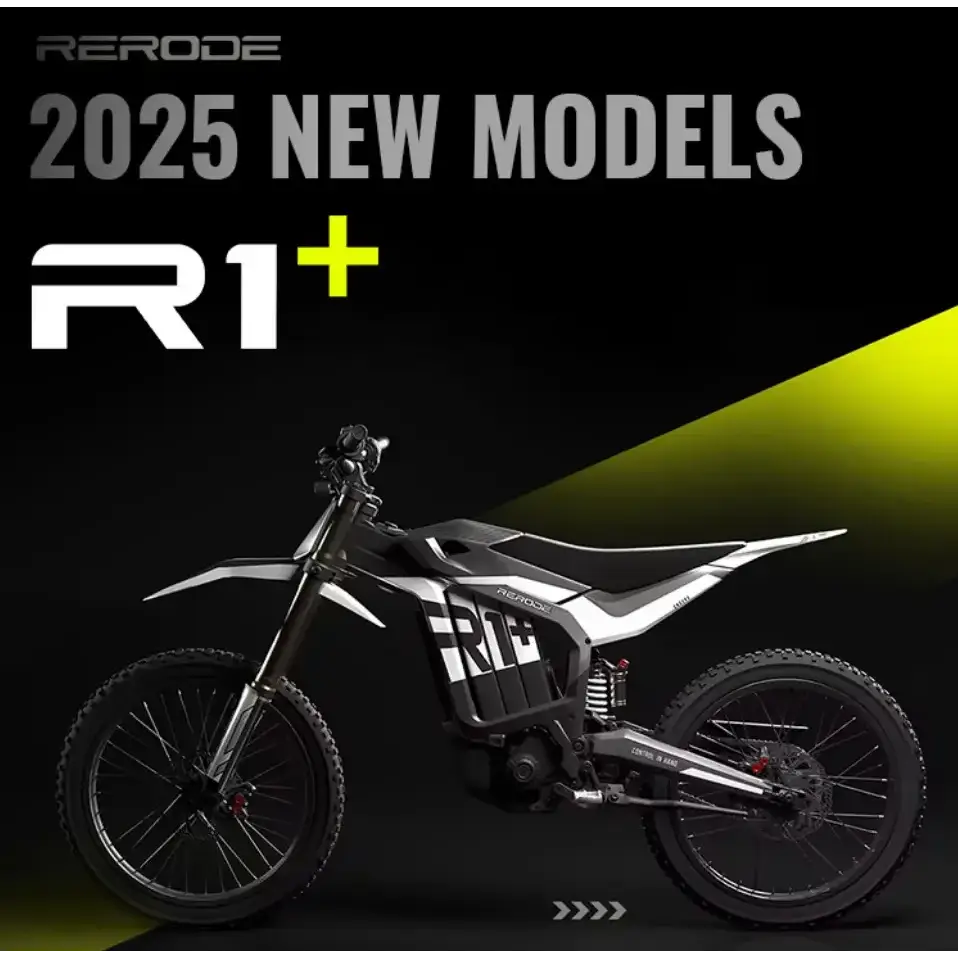

Product name: Rerode R1+

Range per Power: 120KM/H

Tire Size: 70/100-19 90/90-18

Tire Width: 70/100-19 90/90-18

Torque: 500NM, 500N.m

Type: adult electric bike

Voltage: 72V

Wheel Size: 19"





item	Electric Bike
Brand Name	RERODE
Model Number	R1+

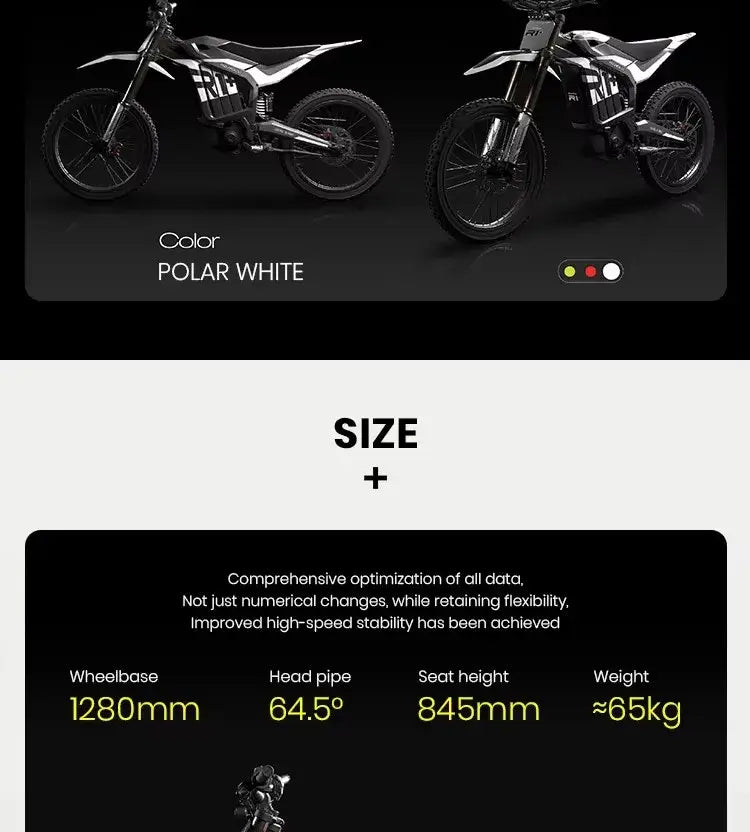

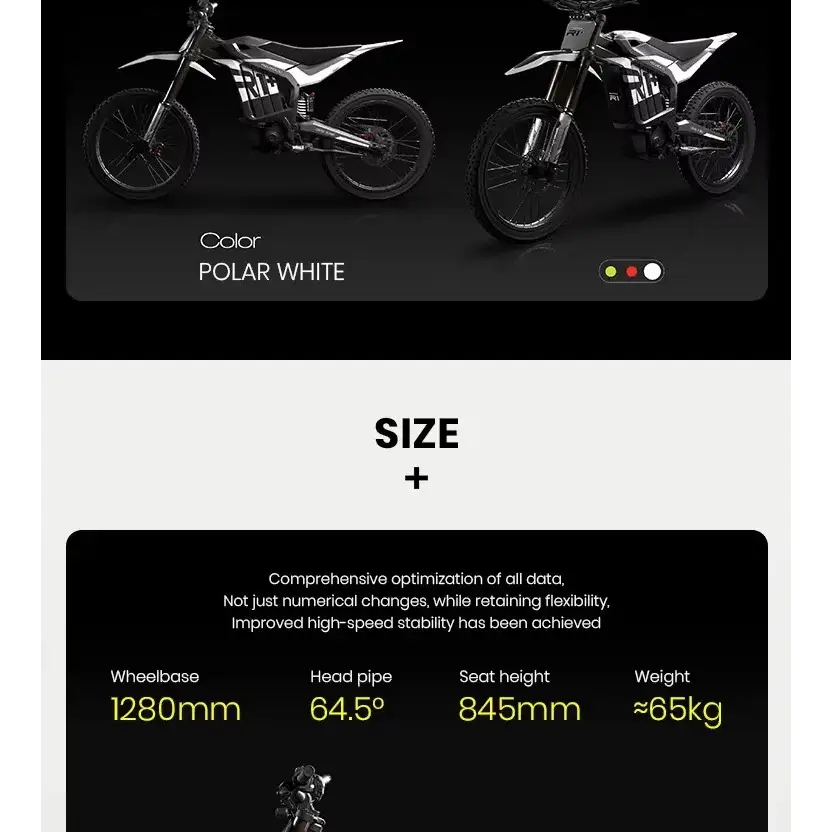

Size	1890mm*775mm*1100mm
Ground clearance	268mm
Wheelbase	1280mm
Sitting height	845mm
Damping	High and low speed damping shock absorption stroke 200mmRear shock absorption stroke 85mm
Maximum payload	100KG
Vehicle quality/including battery	≈65Kg
Top speed	95km/h
Endurance capability	120km(25km/h)

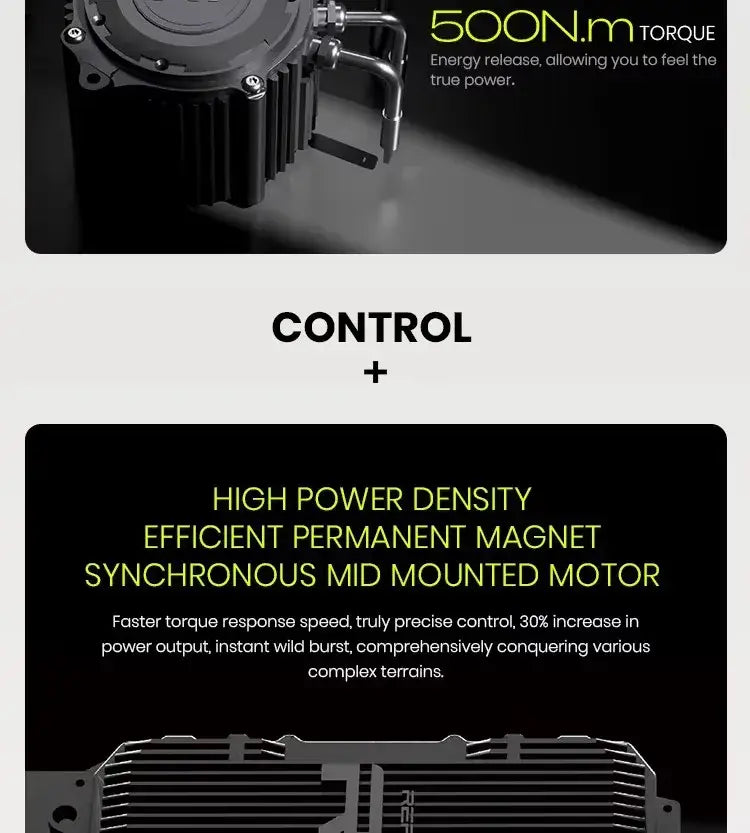

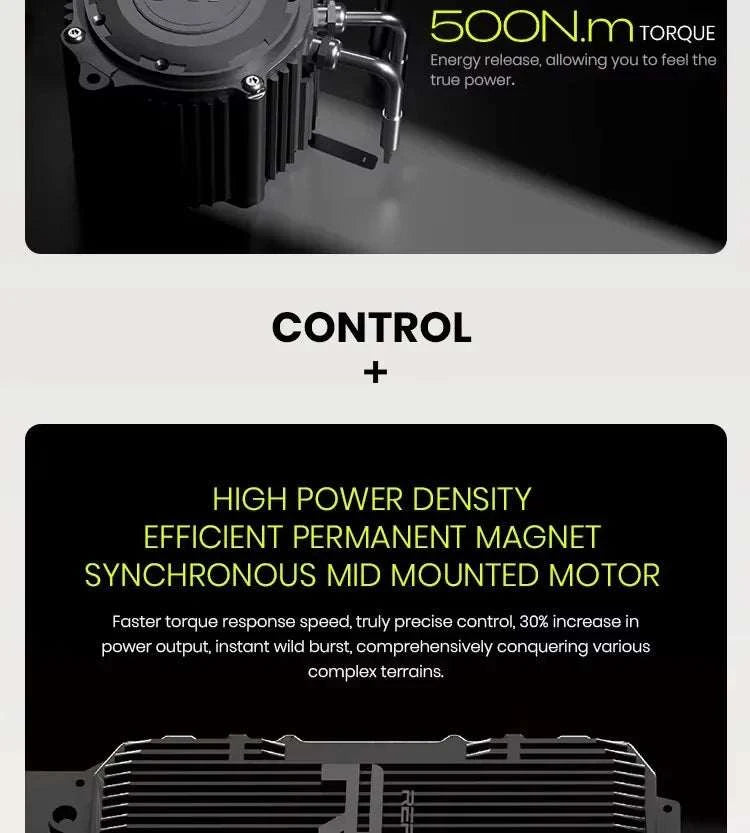

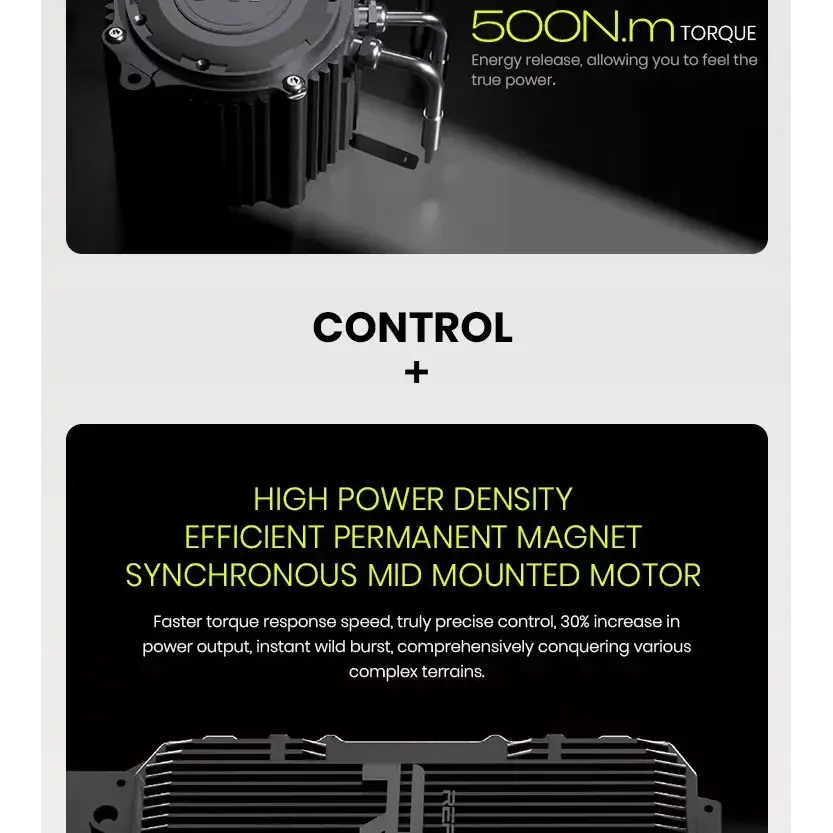

Dynamical system	High power density and high-efficiency permanent magnet synchronous mid mounted motorFOC Vector Sine Wave Controller

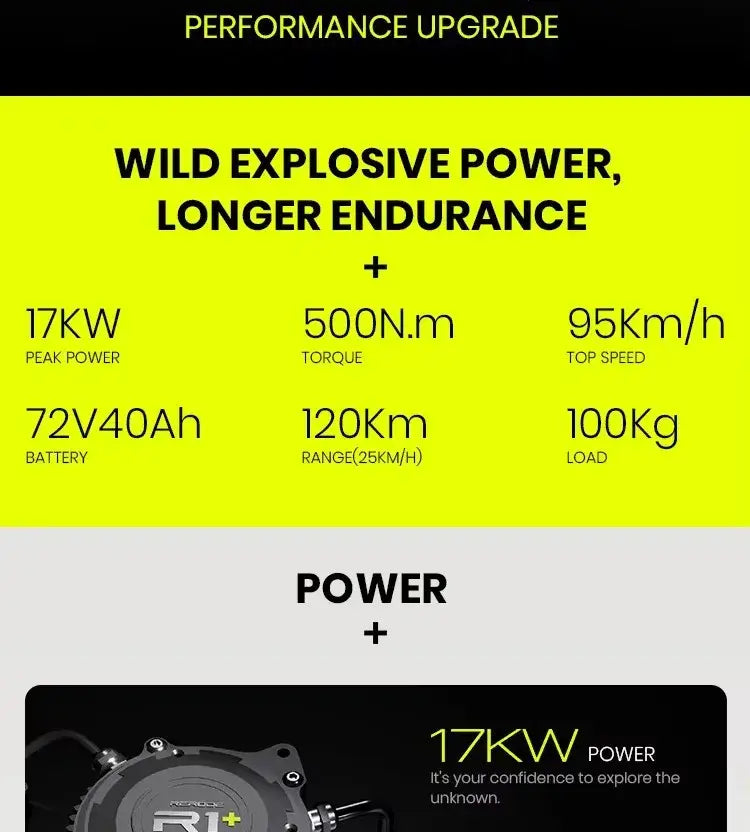

Maximum output power	17KW
Maximum torque of driving wheel	500N.m

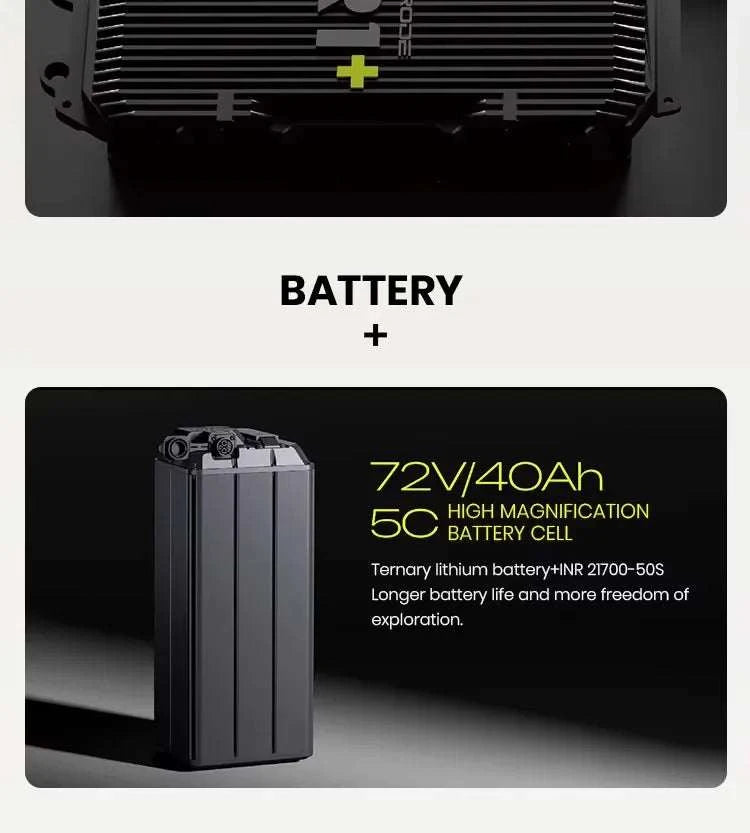

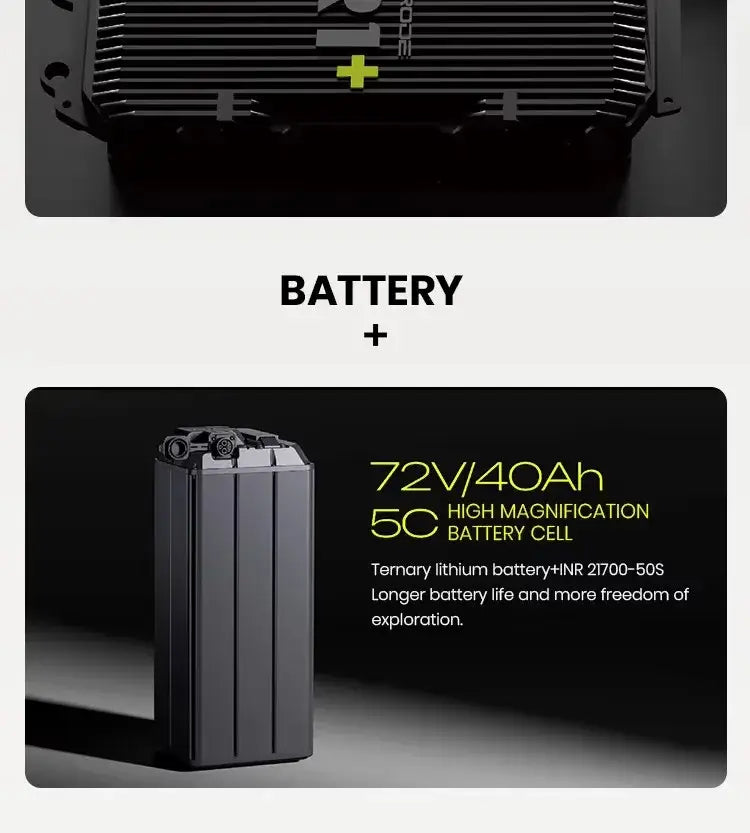

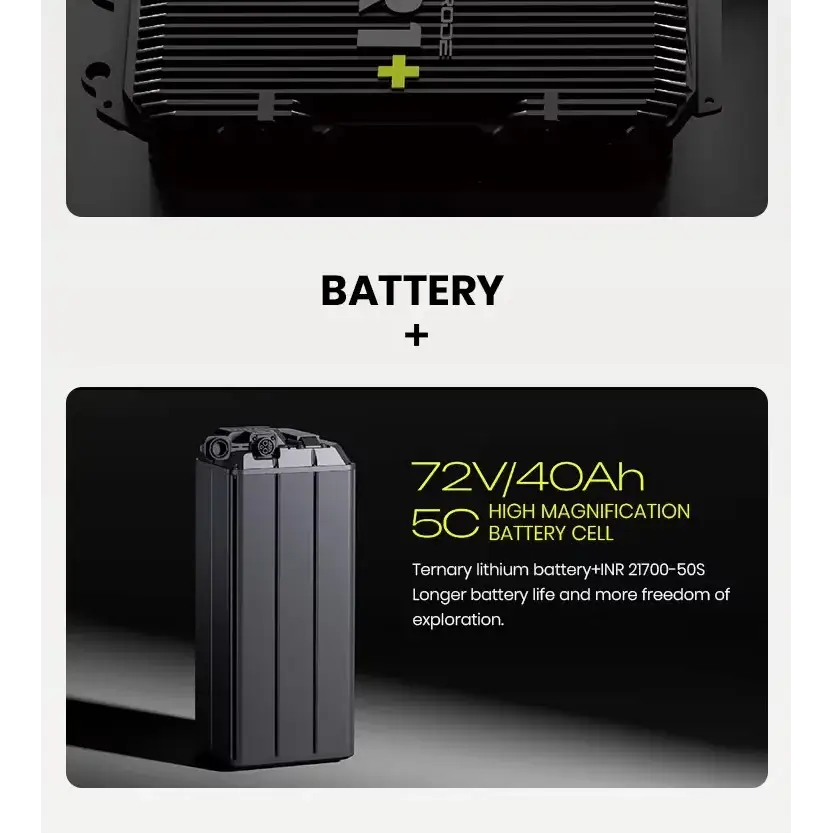

Battery cell	INR 21700-50S
Charging time	4H
Protection grade	IP65

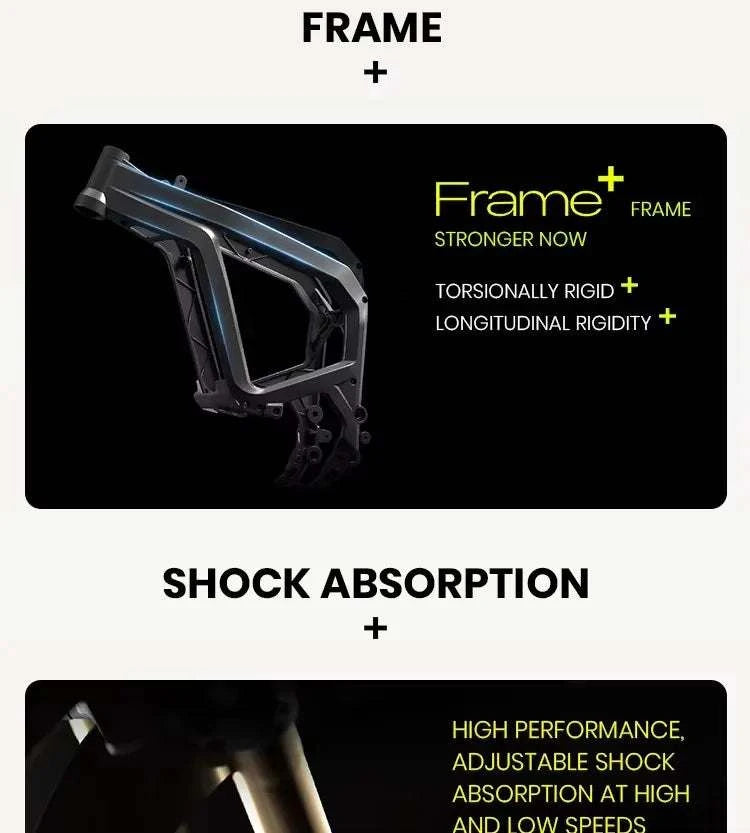

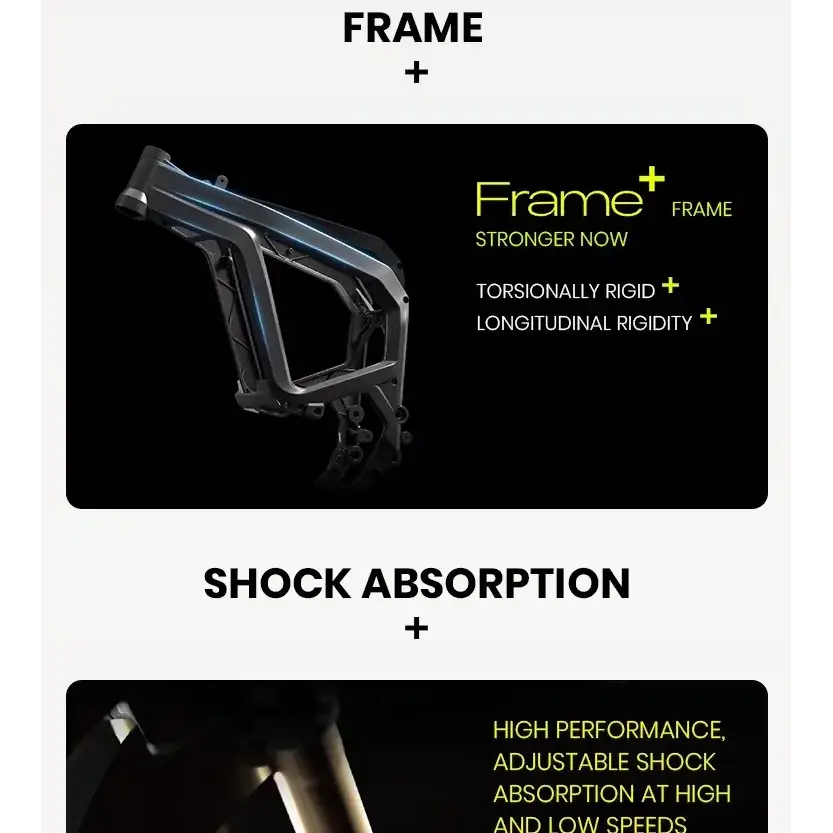

Carriage type	All aluminum and all forged frame

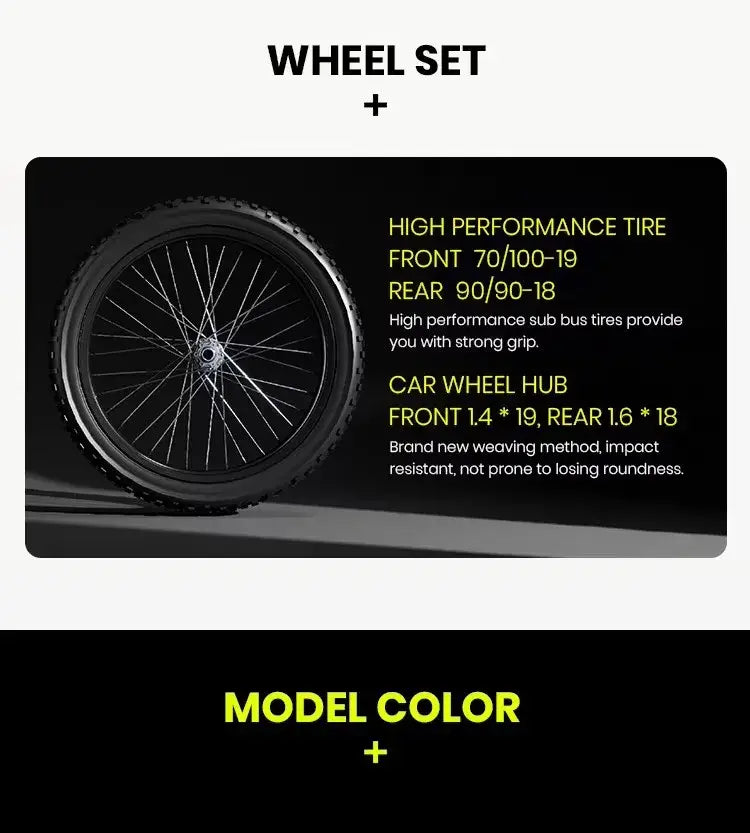

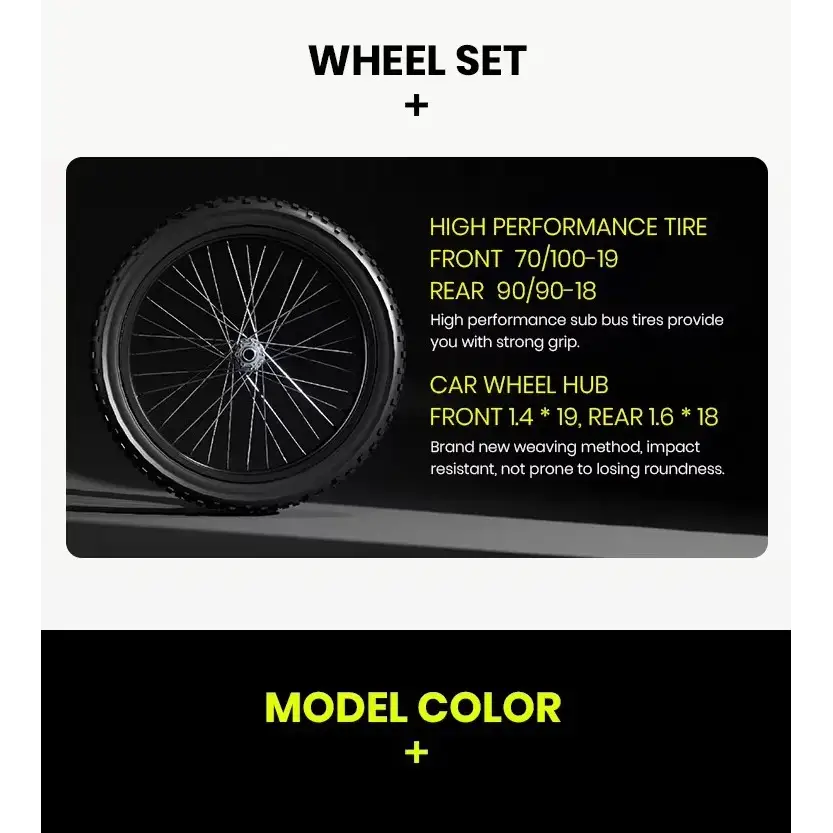

Tire Size	CST Front: 70/100-19 Rear: 90/90-18
Power mode	Economy, Sports, Sports+

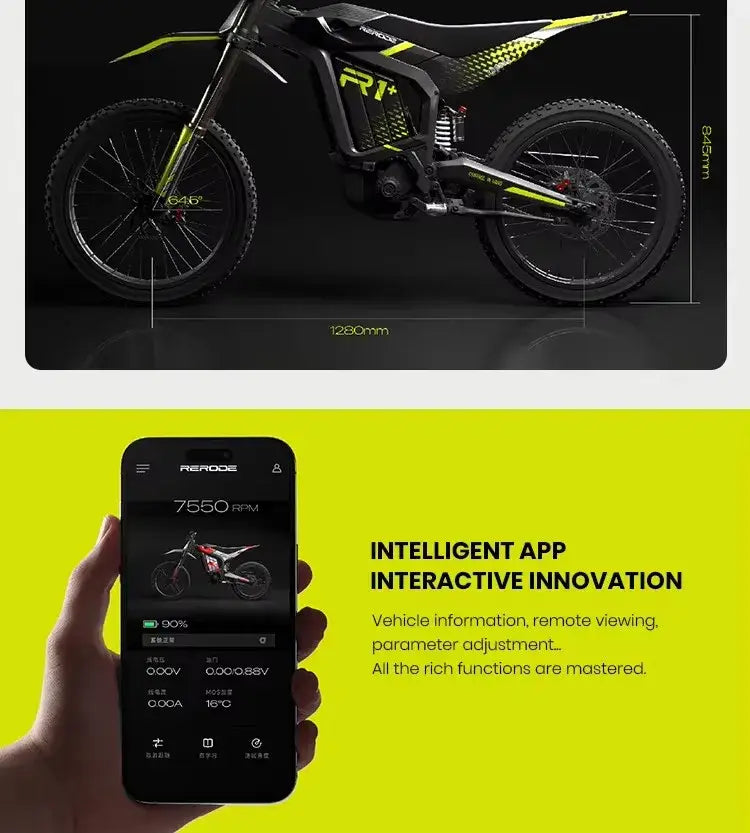

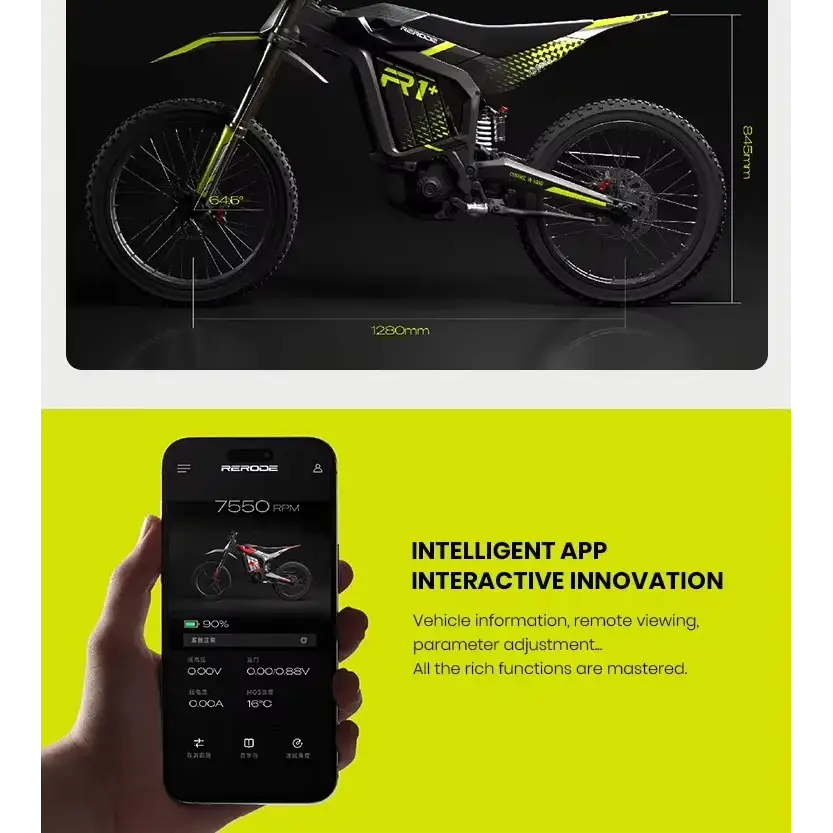

Human computer interaction mode	2-inch TFT LCD instrument panel, intelligent APP
Mobile phone charging interface	USB-5v/TypeC standard interface 2400mA
Auxiliary functionsBattery Capacity	Kinetic energy recovery

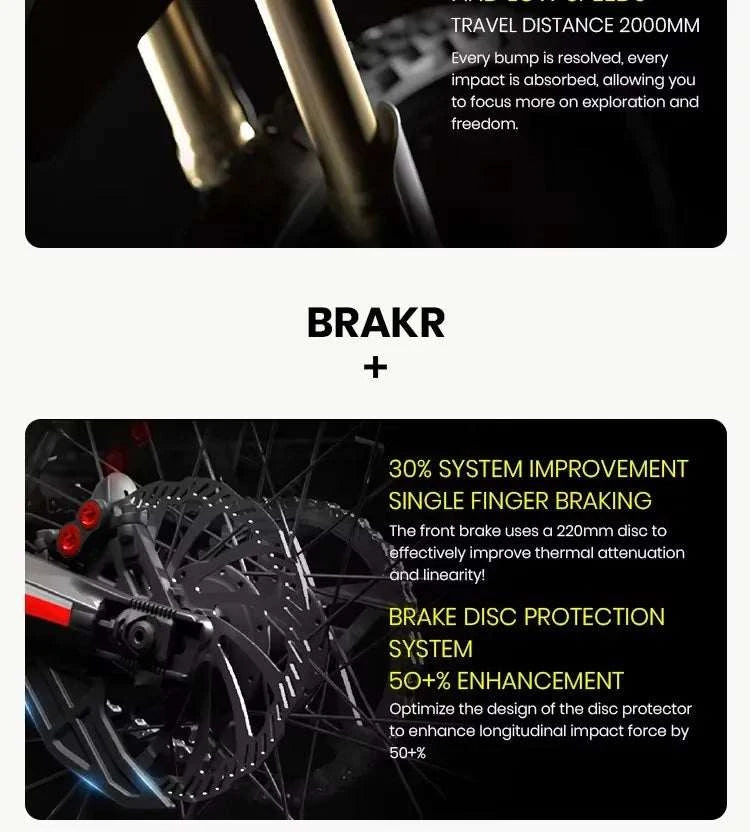

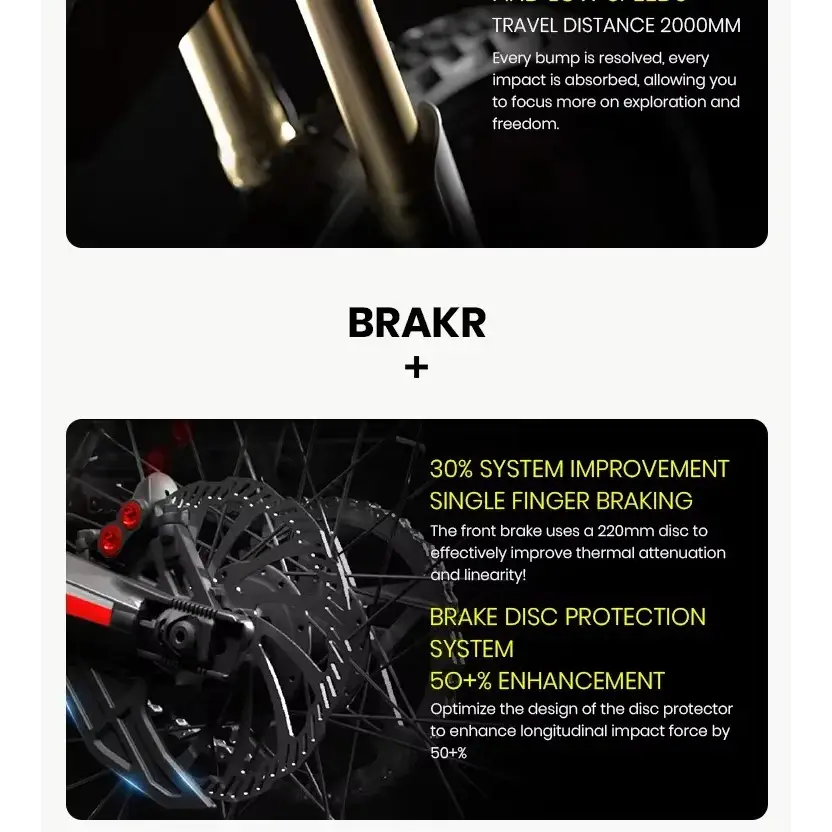

Front and rear brakes	Front: 220mm Rear: 203mm Hydraulic Disc
Charging type	DC-72V

Products Description

Product packaging

Selling Units:	Single item
Single package size:	186X78X105 cm
Single gross weight:	>80.000 kg
